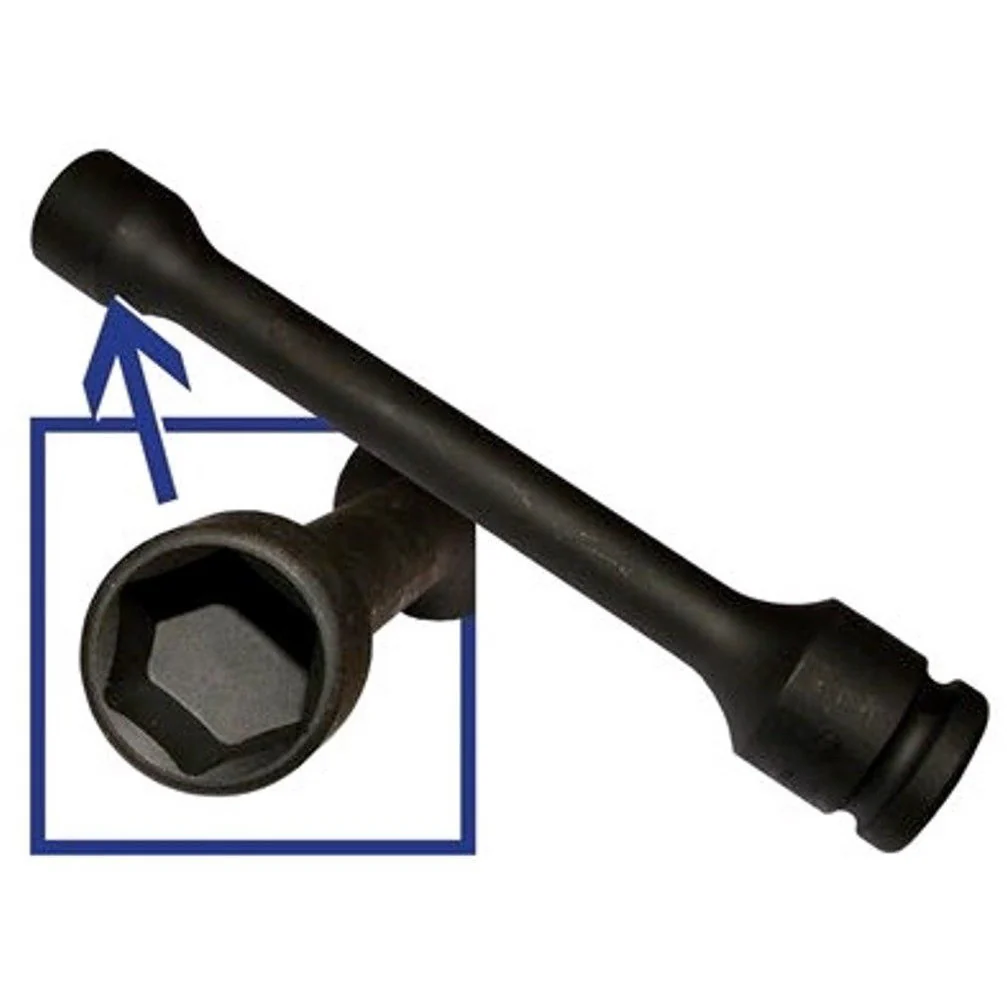

DA1119 Prop Shaft Nut Tool – 1/2" Drive, 9/16" Hex – Land Rover Models

Make prop shaft service fast, precise, and frustration-free with this Prop Shaft Nut Tool (Part No. DA1119). Engineered specifically for Land Rover driveline hardware, this tool’s 9/16" 6-point hex engages the nut flanks—not the corners—for maximum torque transfer without rounding.

The slim-wall, wine-glass profile and integrated narrow extension allow the socket to fit perfectly between U-joint yokes, reaching prop shaft nuts where standard sockets or wrenches cannot. Ideal for U-joint replacement, driveline removal, and general maintenance on both classic and modern Rovers.

Specifications:

• Drive: 1/2" square drive

• Hex Size: 9/16" (6-point)

• Total Length: 150mm

• Outside Diameter: 20mm

• Design: Slim-wall “wine glass” profile for tight clearance

Fits:

• Defender 90/110/130

• Discovery I (1994–1999)

• Discovery II (1999–2004)

• Range Rover Classic (1987–1995)

• Range Rover P38 (1995–2002)

• Series I/II/IIA/III

Install tip: Apply penetrating oil to older prop shaft nuts. The DA1119 makes access easy, but rusty driveline hardware often needs pre-soaking.*

---

Supersession Part Numbers

No supersessions found.

---

FAQ

Why do I need this instead of a regular 9/16" socket?
Standard sockets are too thick and cannot access prop shaft nuts due to U-joint yoke clearance. DA1119 is made specifically for this task.

Will it round the nuts?
No — the flank-drive profile prevents corner rounding and ensures full torque engagement.

Does this work on both front and rear prop shafts?
Yes — fits all prop shaft nut locations on the listed vehicles.

---

Part Number: DA1119
