If you own a Range Rover Sport L320 and you have lifted it to run larger-than-stock tires, there is a mechanical reality built into how Land Rover's air suspension system works that directly affects your ride quality and your long-term reliability on the street and on the trail. The Proud Rhino SYA Extension Kit system was engineered specifically to address it, and this listing covers the full L320 Range Rover Sport production run from 2005 to 2013.

When lift rods are installed on an air-suspended Range Rover Sport, they work by signaling the air suspension system to continuously overfill the air bags in order to reach the new target ride height. The system is doing exactly what it is designed to do, but the result is that the air bags are held under sustained excess pressure to maintain that lifted position. This places the bags and the suspension system outside their intended operating range, and the distinctive ride quality that makes the L320 such a capable and comfortable Rover begins to suffer for it.

The Proud Rhino SYA strut-mounted spacers solve this problem at the source. Rather than relying entirely on overfilled air bags to hold the vehicle at its lifted height, the spacers mount directly to the top of the strut and take up that space mechanically. With the spacers in place, the air bags no longer need to be overfilled to maintain the lifted stance. They return to a fill level much closer to their factory operating pressure, which brings the suspension geometry back toward its original design intent and restores the air suspension's natural ride quality. The result is a lifted Range Rover Sport that rides the way Land Rover intended it to ride.

Important: The SYA spacers must always be installed in conjunction with Proud Rhino Lift Rods. The spacers add no physical lift to the Rover on their own and should never be installed without lift rods. All four kit variants in this listing are designed to be used as part of a complete Proud Rhino lift system.

Beyond the ride quality and geometry benefit, the SYA system also addresses one of the most well-known vulnerabilities of the L320 air suspension platform. Stock bump stops are sized for near-stock tire fitments. If the air suspension were to fail with oversized tires fitted and no spacers in place, the Rover would drop until the tires made contact with the wheel arches, locking it in place entirely. The SYA strut-mounted spacers raise the effective lower limit of suspension travel so that even in a full air suspension failure, your Range Rover Sport retains enough clearance to roll to safety rather than becoming stranded on the trail or on the side of the road.

The Range Rover Sport L320 features a longer strut travel than the LR3 and LR4 L319, and the off-road variants in this listing are supplied with a longer set of limiting straps specifically sized to match the L320's geometry. This is not a shared component with the LR3 and LR4 off-road kits. The street variants use the same spacer hardware across both platforms.

Lucky 8 offers four kit configurations. Select the one that fits your current suspension setup and how you plan to use your Rover.

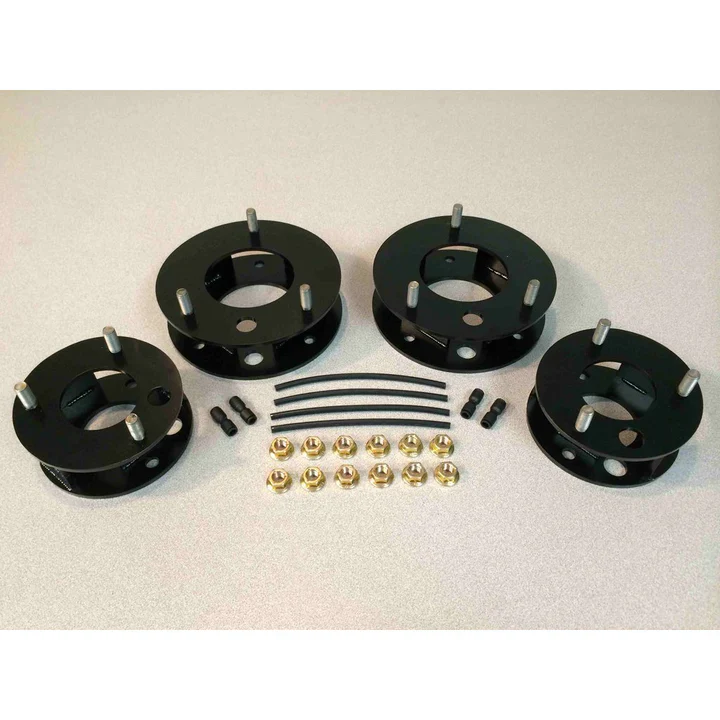

The SYA Extension Street Kit (PRSYAS) is designed for owners whose Range Rover Sport L320 already has Proud Rhino Lift Rods installed and who drive exclusively on the street. It includes the complete strut-mounted spacer kit with all spacers, airline extensions, and mounting hardware.

The SYA Extension Street Kit Plus (PRSYASP) adds a set of Proud Rhino 2.5 in (63.5 mm) Lift Rods to the complete spacer kit. It is the street-use kit built for a Range Rover Sport L320 that is currently on stock suspension and needs both components installed together to complete the system correctly.

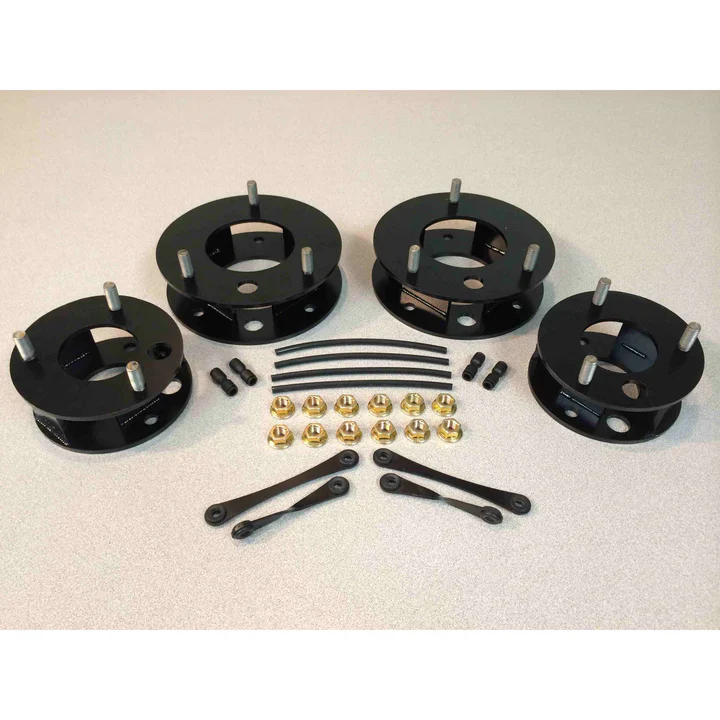

The SYA Off Road Extension Kit (PRSYAOR-LONG) is engineered for Range Rover Sport L320 owners whose Rover already has Proud Rhino Lift Rods installed and who will be driving off-road. It adds a set of four limiting straps sized specifically for the L320 strut geometry to the complete spacer kit. When the spacers are installed, downward suspension travel increases, and that additional droop introduces real risk of over-flexing the CV joints and axles during full off-road articulation. The four limiting straps cap that droop and keep the drivetrain protected throughout every flex cycle on the trail.

The SYA Off Road Extension Kit Plus (PRSYAORP-LONG) is the most complete configuration in the lineup and is designed for a stock-suspension Range Rover Sport L320 that will be lifted and taken off-road. It combines the full strut-mounted spacer kit with a set of four limiting straps, a new set of Proud Rhino 2.5 in (63.5 mm) Lift Rods, and two rear strap locking tabs to prevent the limiting straps from chafing against adjacent components during use. This is the all-in-one build kit for a Range Rover Sport going from stock to trail-ready in a single purchase.

Please note: The SYA Kit is designed to enhance your Rover's off-road performance and functionality. On some vehicles, when set to Access Mode, the vehicle may detect the SYA Kit and prevent it from remaining in Access Mode.

Fits:
Range Rover Sport L320 (2005 to 2009) 4.4-liter V8, 4.2-liter V8 Supercharged Petrol/Gas,
Range Rover Sport L320 (2010 to 2013) 5.0-liter V8, 5.0-liter V8 Supercharged Petrol/Gas

Part Number: PRSYAS / PRSYASP / PRSYAOR-LONG / PRSYAORP-LONG

Free shipping to the lower 48!

No supersessions found.

FAQ

How do I know which kit variant to select from the dropdown?

The right choice comes down to two questions: does your Range Rover Sport L320 already have Proud Rhino Lift Rods installed, and do you plan to drive it on the street or take it off-road? If your Rover already has lift rods installed and stays on the street, the Street Kit (PRSYAS) includes the strut-mounted spacers, airline extensions, and all mounting hardware. If your Rover is on stock suspension and will stay on the street, the Street Kit Plus (PRSYASP) includes the spacer kit and the Proud Rhino 2.5 in (63.5 mm) Lift Rods needed to complete the system correctly. If your Rover already has lift rods installed and you plan to take it off-road, the Off Road Kit (PRSYAOR-LONG) adds four long-format limiting straps sized specifically for the L320 strut geometry to protect the CV joints during trail articulation. If your Rover is on stock suspension and you are building it for off-road use from the ground up, the Off Road Kit Plus (PRSYAORP-LONG) includes the spacer kit, long-format limiting straps, lift rods, and rear strap locking tabs in a single package.

Does installing the SYA kit affect my Range Rover Sport's ride quality?

Yes, and in a meaningful way. When lift rods are installed on an air-suspended Range Rover Sport, the system responds by continuously overfilling the air bags to reach the new target ride height. This holds the bags under sustained excess pressure and pulls the suspension outside its intended operating range, which noticeably affects ride quality. The SYA strut-mounted spacers address this directly. By mounting to the top of the strut and taking up space mechanically, the spacers allow the air bags to return to a fill level much closer to their factory operating pressure. With the bags no longer forced to overextend to hold the lifted height, the suspension geometry returns toward its original design intent and the air suspension's natural ride quality is restored. Owners consistently report a noticeable improvement in on-road ride comfort after the complete SYA system is installed alongside the lift rods.

Can I install the SYA spacers without lift rods?

No. The SYA strut-mounted spacers must always be installed in conjunction with Proud Rhino Lift Rods and should never be fitted on their own. The spacers add no physical lift to the Rover. Their function is to work alongside the lift rods to relieve the air bags from the excess pressure created by the lift, allowing the suspension to operate correctly at the new ride height. Installing the spacers without lift rods would serve no purpose and is not a supported configuration. If your Range Rover Sport L320 is currently on stock suspension, select either the Street Kit Plus (PRSYASP) or the Off Road Kit Plus (PRSYAORP-LONG), both of which include the Proud Rhino 2.5 in (63.5 mm) Lift Rods as part of the complete system.

Why do the off-road variants for the Range Rover Sport use different limiting straps than the LR3 and LR4 kits?

The Range Rover Sport L320 features a longer strut travel than the LR3 and LR4 L319, which means the standard-length limiting straps used in those kits would not correctly cap the droop travel on the L320. The off-road variants in this listing, PRSYAOR-LONG and PRSYAORP-LONG, are supplied with a longer set of limiting straps engineered specifically for the L320's strut geometry and suspension travel range. If you own both an L320 and an LR3 or LR4 and are ordering for multiple Rovers, make sure you are selecting the correct kit for each platform.

Please note: The SYA Kit is designed to enhance your Rover's performance and functionality. On some vehicles, when set to Access Mode, the vehicle may detect the SYA Kit and prevent it from remaining in Access Mode.

Instructions can be found at this link: https://cdn.shopify.com/s/files/1/2178/4267/files/SYA_install_2022.pdf?v=1643221119

All Proud Rhino products are made proudly in the USA.
